Nichicon

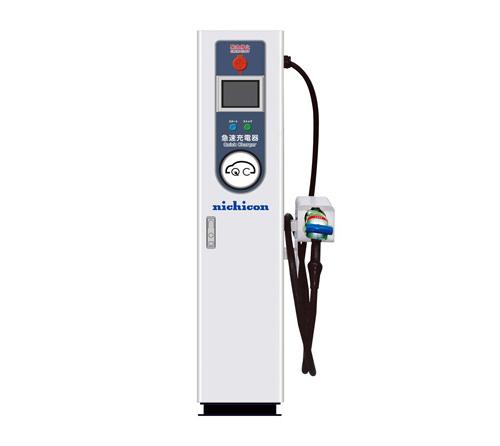

10 kW

Model name: NQC-A102
TECHNICAL DETAILS

Connector details: CHAdeMO

Max DC output power:
NQC-A102: 10 kW

Max DC current:
NQC-A102: 20 A
Output DC Voltage range: 50-500V

Input: Three Phases AC200V

Communication Protocols: CHAdeMO 0.9.1

Efficiency 95%
GO TO PRODUCT PAGE
DESCRIPTION

Output power composed of multiple power modules, which enable improved productivity, easier maintenance, as well as smaller and lighter body. Nichicon works on more variety in CHAdeMO 1.0.1 compliant chargers.

FEATURES
CHAdeMO1.0.1 compliant charger using the second generation module and renewed control design. While increasing power and output current, we managed to make the charger body more compact anticipating ever increasing EV battery capacity.
DOWNLOAD BROCHURE

20 kW

Model name: NQC-A202, NQC-A202E, NQC-A202ES, NQC-A202N
TECHNICAL DETAILS

Connector details: CHAdeMO

Max DC output power:
NQC-A202: 20 kW
NQC-A202E: 20 kW
NQC-A202ES: 20 kW
NQC-A202N: 20 kW

Max DC current:
NQC-A202: 40 A
NQC-A202E: 40 A
NQC-A202ES: 40 A
NQC-A202N: 40 A
Output DC Voltage range: 50-500V

Input: Three Phases AC200V

Communication Protocols: CHAdeMO 0.9.1

Efficiency 90%
GO TO PRODUCT PAGE
DESCRIPTION

Output power composed of multiple power modules, which enable improved productivity, easier maintenance, as well as smaller and lighter body. Nichicon works on more variety in CHAdeMO 1.0.1 compliant chargers.

FEATURES
CHAdeMO1.0.1 compliant charger using the second generation module and renewed control design. While increasing power and output current, we managed to make the charger body more compact anticipating ever increasing EV battery capacity.
DOWNLOAD BROCHURE

30 kW

Model name: NQC-A302, NQC-A302E, NQC-A302N
TECHNICAL DETAILS

Connector details: CHAdeMO

Max DC output power:
NQC-A302: 30 kW
NQC-A302E: 30 kW
NQC-A302N: 30 kW

Max DC current:
NQC-A302: 60 A
NQC-A302E: 60 A
NQC-A302N: 60 A
Output DC Voltage range: 50-500V

Input: Three Phases AC200V

Communication Protocols: CHAdeMO 0.9.1

Efficiency 90%
GO TO PRODUCT PAGE
DESCRIPTION

Output power composed of multiple power modules, which enable improved productivity, easier maintenance, as well as smaller and lighter body. Nichicon works on more variety in CHAdeMO 1.0.1 compliant chargers.

FEATURES
CHAdeMO1.0.1 compliant charger using the second generation module and renewed control design. While increasing power and output current, we managed to make the charger body more compact anticipating ever increasing EV battery capacity.
DOWNLOAD BROCHURE

50 kW

Model name: NQC-A502, NQC-A502E, NQC-A502N
TECHNICAL DETAILS

Connector details: CHAdeMO

Max DC output power:
NQC-A502: 50 kW
NQC-A502E: 50 kW
NQC-A502N: 50 kW

Max DC current:
NQC-A502: 100 A
NQC-A502E: 100 A
NQC-A502N: 100 A
Output DC Voltage range: 50-500V

Input: Three Phases AC200V

Communication Protocols: CHAdeMO 0.9.1

Efficiency 90%
GO TO PRODUCT PAGE
DESCRIPTION

Output power composed of multiple power modules, which enable improved productivity, easier maintenance, as well as smaller and lighter body. Nichicon works on more variety in CHAdeMO 1.0.1 compliant chargers.

FEATURES
CHAdeMO1.0.1 compliant charger using the second generation module and renewed control design. While increasing power and output current, we managed to make the charger body more compact anticipating ever increasing EV battery capacity.
DOWNLOAD BROCHURE

About charger manufacturer

Company description

Aluminum Electrolytic Capacitor, Film Capacitor, Positive Thermistor “Pozial ®”, V2H System, Home Storage System, Quick Charger for EV, Public / Industrial Energy Storage System, Switching Power Supply, Functional Module, Medical Accelerator Power Supply, for Academic Research Accelerator power supply, power failure / instantaneous low compensation device, etc.

Markets covered
EV products

Vehicle charger, V2H system, quick charger, film capacitor for inverter, aluminum electrolytic capacitor for automobiles.
